Listed below is an accurate record of the rolling stock used by the Monon.
This list was complied with assistance from George Elwood's Fallen Flags website.
A detailed roster is posted on his Monon age Monon Freight Page.

---

AAR Type	Description	Numbers	Length	Width	Height	Cube	# Of Cars

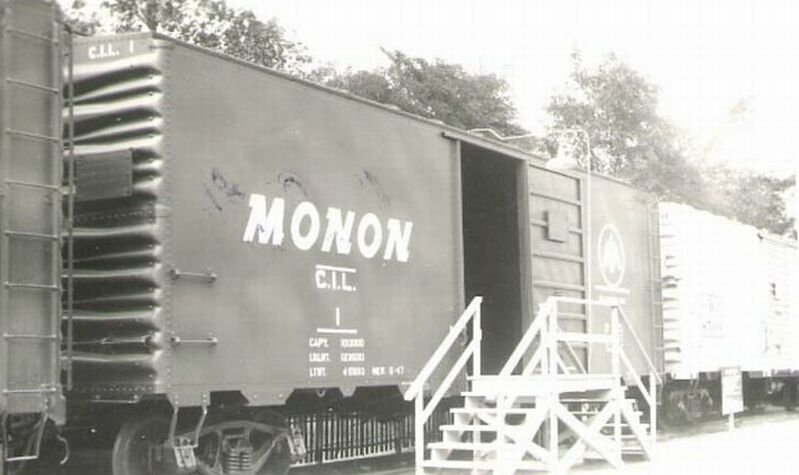

XM	Box	1-500	44' 4"	10' 7"	15' 1"	3901	500
XM	Box	501-533	44' 4"	10' 7"	15' 1"	3901	9
XM	Box	541-851	44' 4"	10' 7"	15' 0"	3901	158

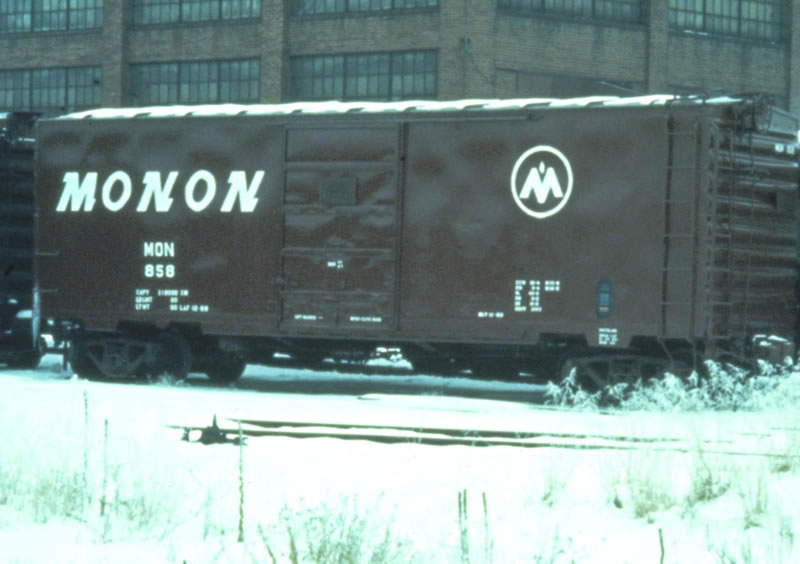

XM	Box	855-861	44' 4"	10' 7"	15' 0"	3901	4
XM	Box	865-954	44' 4"	10' 7"	15' 0"	3890	107
XL	Box, Evans DF (AP)	1226-1240	44' 4"	10' 7"	15' 0"	3901	12
XL	Box, Tri-Belt (AP)	1241-1288	44' 4"	10' 5"	15' 0"	4780	4
Xl	Box Utility Ldr, NSF	1351-1360	54' 4"	10' 5"	15' 1"	4830	5
XL	Box, CUF, Tri-Belt	1390-1399	53' 4"	10' 8"	15' 1"	4830	5
XL	Box, Stranchion Ldg	1400-1499	54' 5"	10' 8"	15' 1"	4770	12

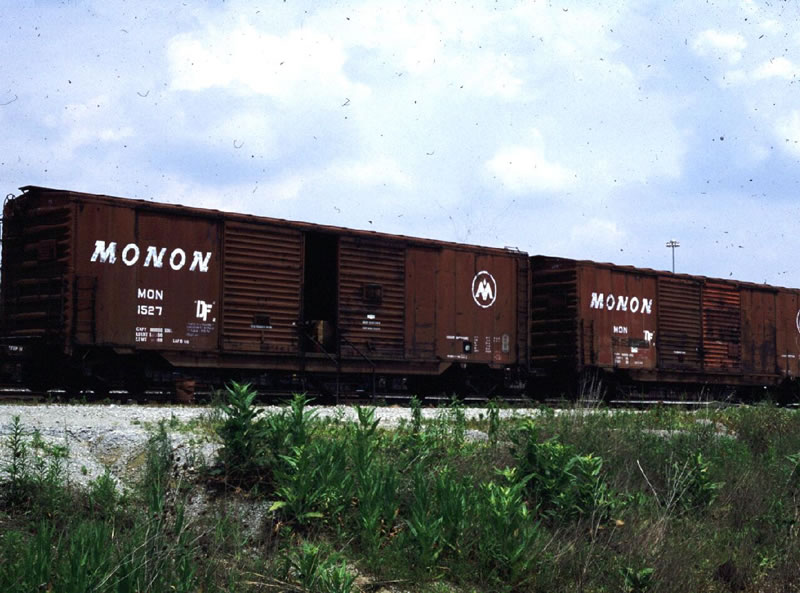

XL	Box, CFU	1500-1550	58' 6"	10' 8"	15' 1"	4770	12
XM	Box	1601-1690	54' 5"	10' 8"	15' 0"	4770	10
XM	Box	1701-1750	54" 4"	10' 8"	15' 1"	4830	27

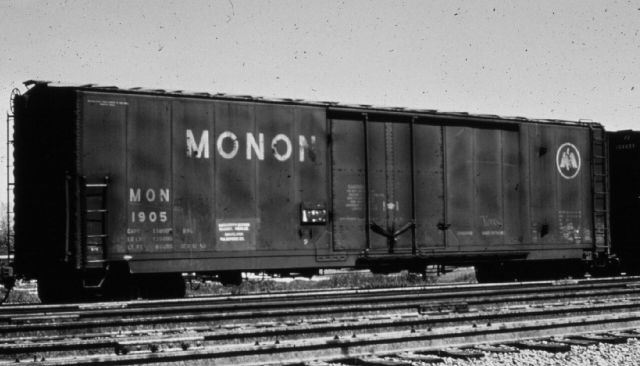

RBL	Refrig	1900 - 1925	57' 8"	10' 8"	15' 1"	4638	13
XL	Box, Evans Blkhd	1950 - 1959	54' 4"	10' 5"	15' 0"	4860	4
XL	Box	2000 - 2012	54' 4"	10' 6"	14' 11"	4985	13
XL	Box, CUF	2500 - 2504	58' 7"	10' 7"	14' 11"	4985	5

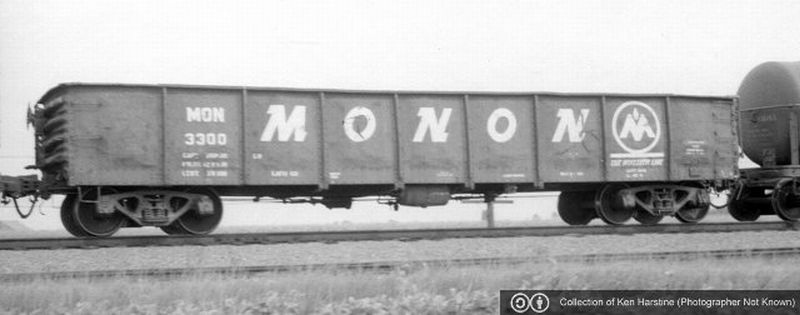

GB	Gon, Fixed Ends	3001 - 3300	45' 11"	10' 3"	8' 2"	1848	2

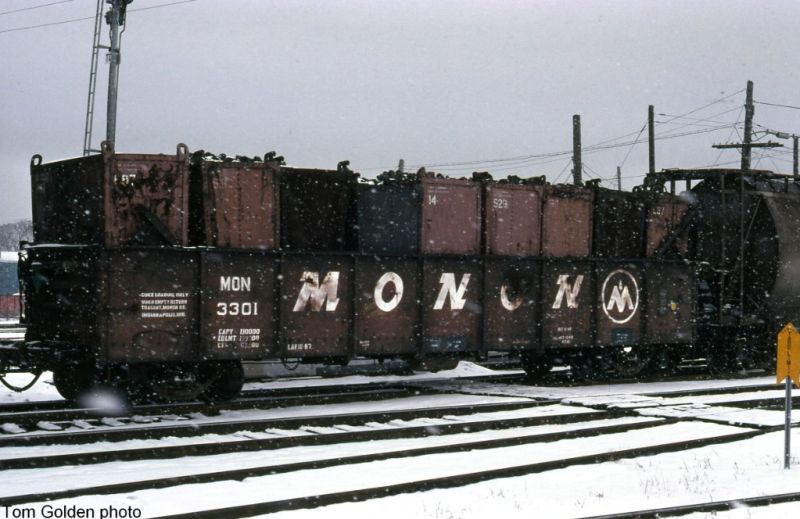

LG	Container, 9 units	3301 - 3310	45' 11"	10' 3"	8' 2"	1848	8
LG	Container, 9 units	3311 - 3317	45' 11"	10' 3"	8' 2"	1848	2
LG	Container, 11 units	3625 - 3648	56' 8"	10' 4"	6' 5"	1136	24

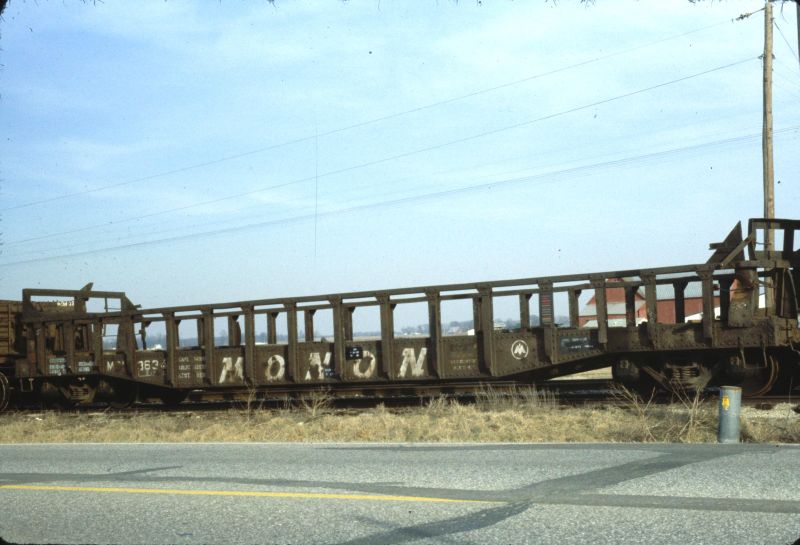

GBSR	Gon, skel frame (coil stl)	3675 - 3680	56' 8"	10' 4"	12' 2"	1136	6
GBR	Gon, Fixed Ends	3700 - 3710	56' 8"	10' 4"	6' 5"	1136	6

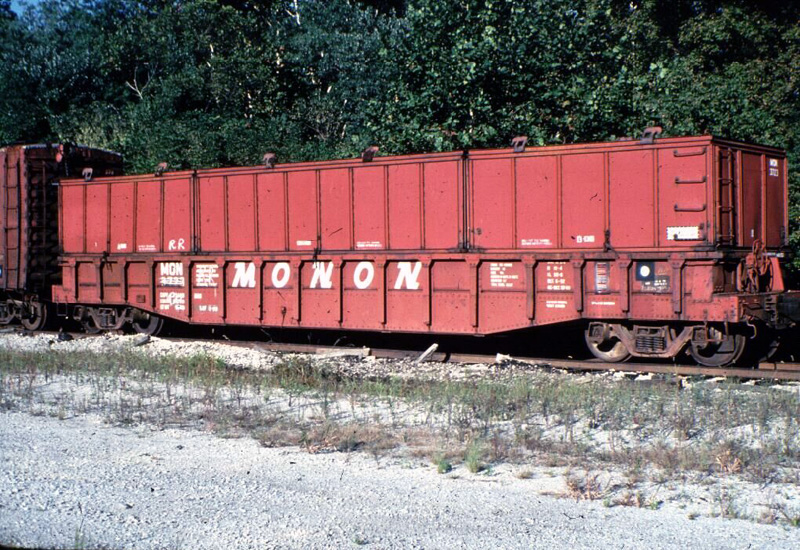

GBSR	Gon, Fixed Ends	3720 - 3723	56' 8"	10' 4"	12' 3"	1136	4

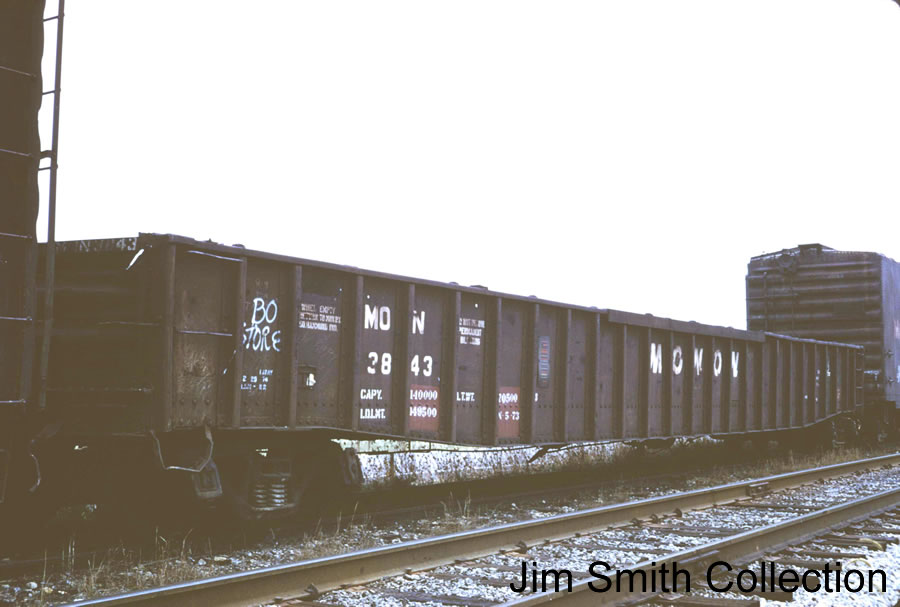

GB	Gon, Fixed Ends	3801 - 3850	70' 3"	8' 11"	7' 2"	2000	13
HM	Hopper	4001 - 4150	36' 6"	10' 6"	10' 8"	2145	111
LO	Covered Hopper	4201 - 4390	37' 9"	10' 2"	12' 10"	1958	54
LO	Covered Hopper	4401 - 4450	49' 7"	10' 2"	13'	2893	45
LO	Covered Hopper	4451 - 4499	49' 7"	10' 7"	13' 6"	3919	39
HK	Hopper	5001 - 5020	36' 11"	10' 8"		1970	15
FA	Flat, Tri-level (Auto)	6006 - 6017	91' 7"	9' 9"	16' 11"		9

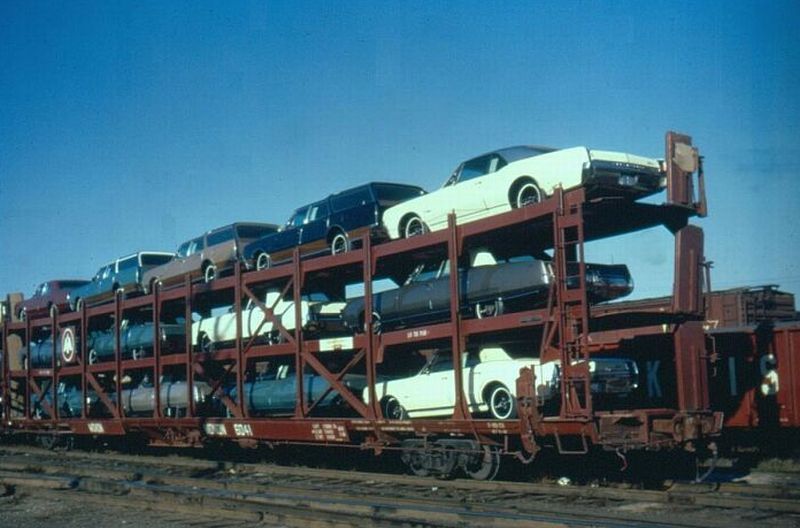

FA	Flat, Tri-level, Freightmaster	6032 - 6045	91' 7"	9' 9"	16' 11"		15
FA	Flat, Piggy-back	6046 - 6055

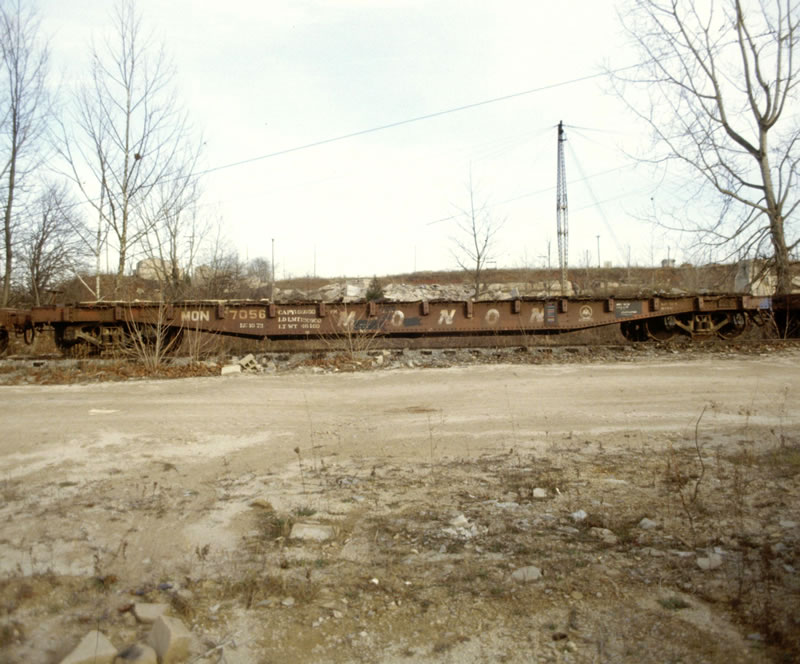

FM	Flat	7000 - 7059	56' 9"	10' 6"	3' 8"		5

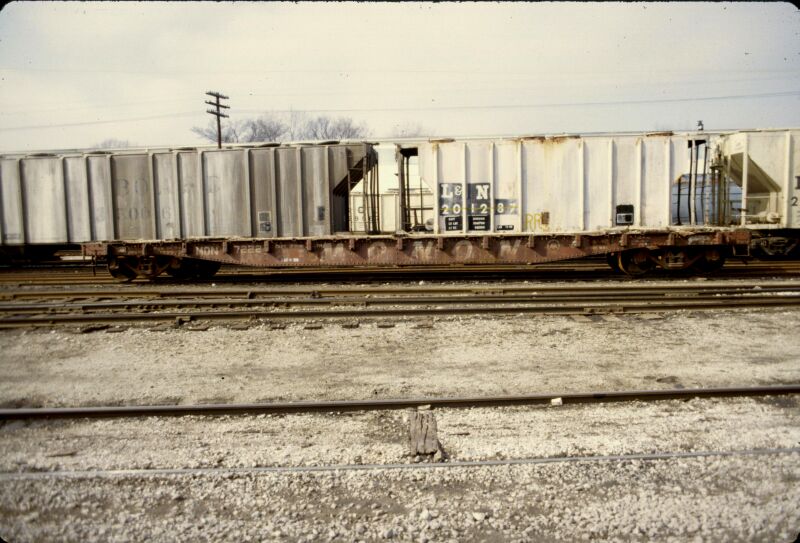

FM	Flat	7201 - 7250	56' 9"	10' 6"	3' 8"		32
FM	Flat	7600 - 7621	53' 6"	10' 6"	3' 8"		3
FMS	Flat, 12 Brandon Tie-Down	7711 - 7713	53' 6"	10' 6"	3' 8"		3

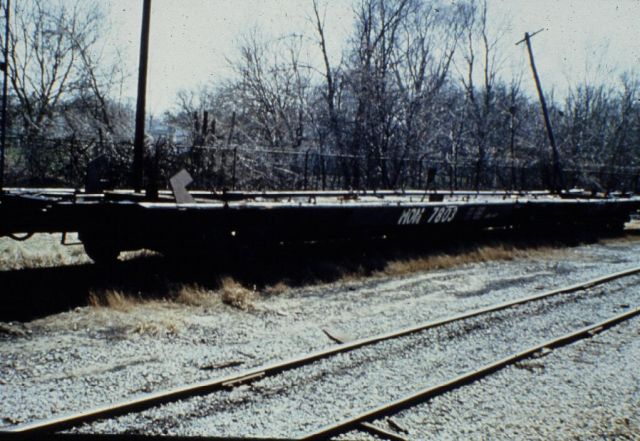

FC	Flat	7800 - 7805	91' 7"	9' 9"	7' 2"		6
XM	Box	9500 - 9999	44' 3"	10' 8"	14' 6"	3710	5
XM	Box	10000 - 10099	44' 4"	10' 7"	15' 6	3901	41
LC	Box	10100 - 10421	44' 4"	10' 7"	15' 6"	3901	131
LC	Box	15000 - 15009	55' 6"	10' 8"	15' 10"	5308	100
XL	Box, Utility Ldr	21000 - 21017	55' 11"	10' 8"	15' 1"	4885	11
XL	Box, Utility Ldr	21018 - 21030	55' 11"	10' 8"	15' 1"	4885	6
GB	Gon, fixed ends	30000 - 30099	43' 5"	10' 3"	8' 2"	1848	48

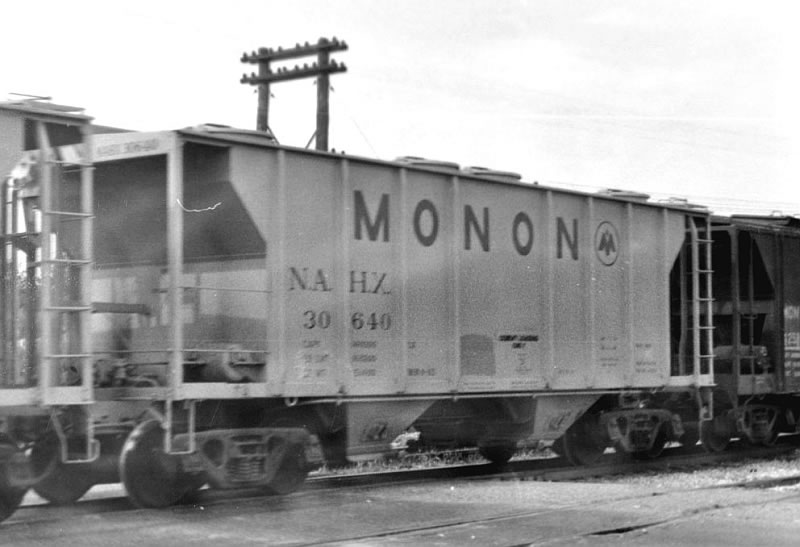

LO	Covered Hopper	30600 - 30649	35' 3"	10' 8"	12' 10"	2007	38
GB	Gon, wood floor	35001 - 35059	54' 2"	10' 4"	6' 5"	1137	58
HM	Hopper	41500 - 41699	36' 6"	10' 8"	10' 9"	2171	58
LO	Covered Hopper	43000 - 43099	49' 7"	10' 7"	13' 6"	3219	35
LO	Covered Hopper	44000 - 44049	49' 7"	10' 7"	15' 0"	4000	49
LO	Covered Hopper, Airslide	45000 - 45004	49' 11"	10' 8"	14' 6"	2600	5

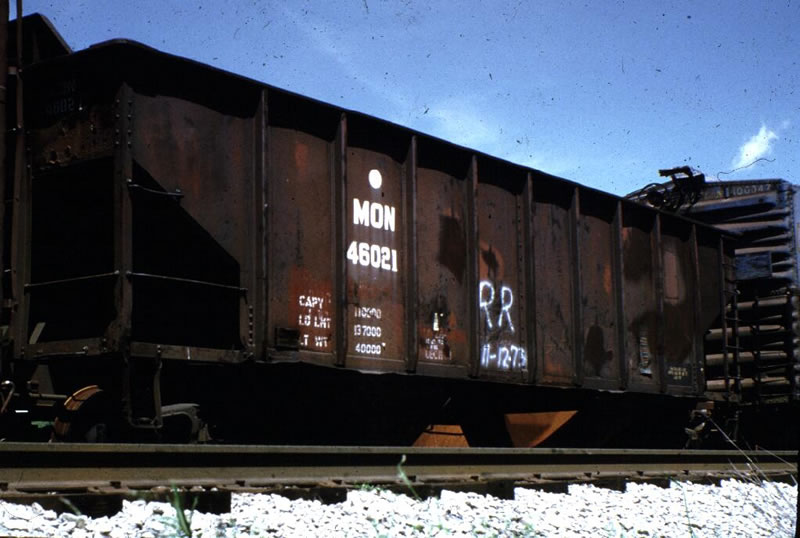

HM	Hopper	46000 - 46023	36' 6"	10' 5"	12' 0"	2143	15
HM	Hopper	46025 - 46041	38' 6"	10' 5"	12' 0"	2143	12

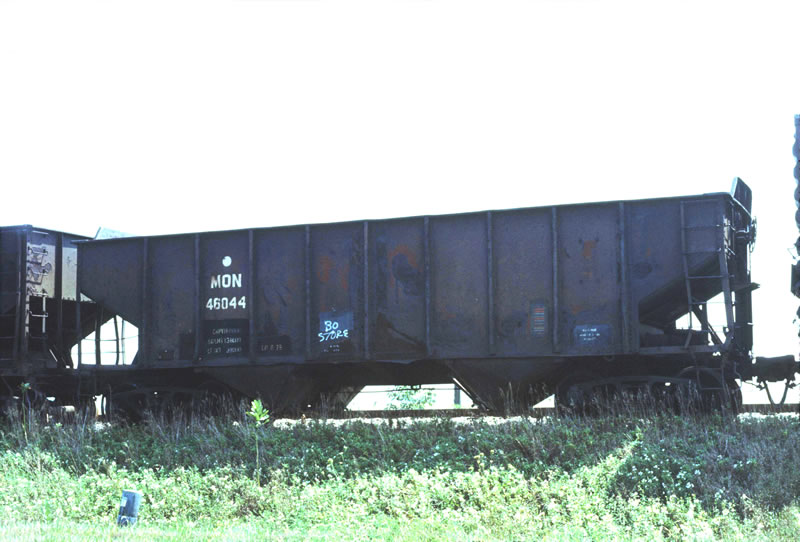

HM	Hopper	46043 - 46059	38' 6"	10' 5"	12' 0"	2143	13

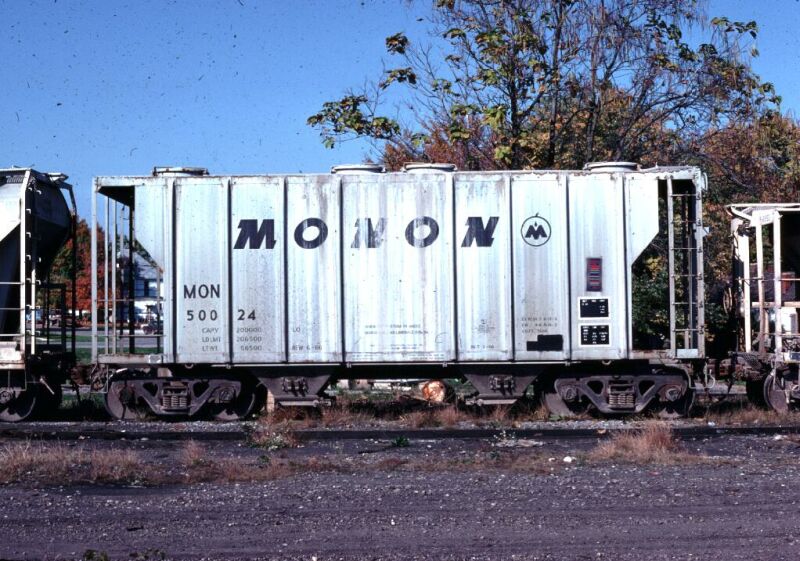

LO	Covered Hopper	50000 - 50039	37' 9"	10' 7'	14' 7"	2600	36
LO	Covered Hopper, Center Flow	52000 - 52099	39' 5"	10' 8"	15' 1"	2970	99
LO	Covered Hopper	56000 - 56099	35' 3"	10' 2"	12' 10"	1958	77
RBNX	Box, Insulated, P/D	90261 - 90270

MONON Equipment Still Existing Map by Nathan Miles link:

Information is from this MRH-TS Society, the Railroad Preservation Index and the RR Picture Archives sites.

Web page plotted by Nathan Miles.
